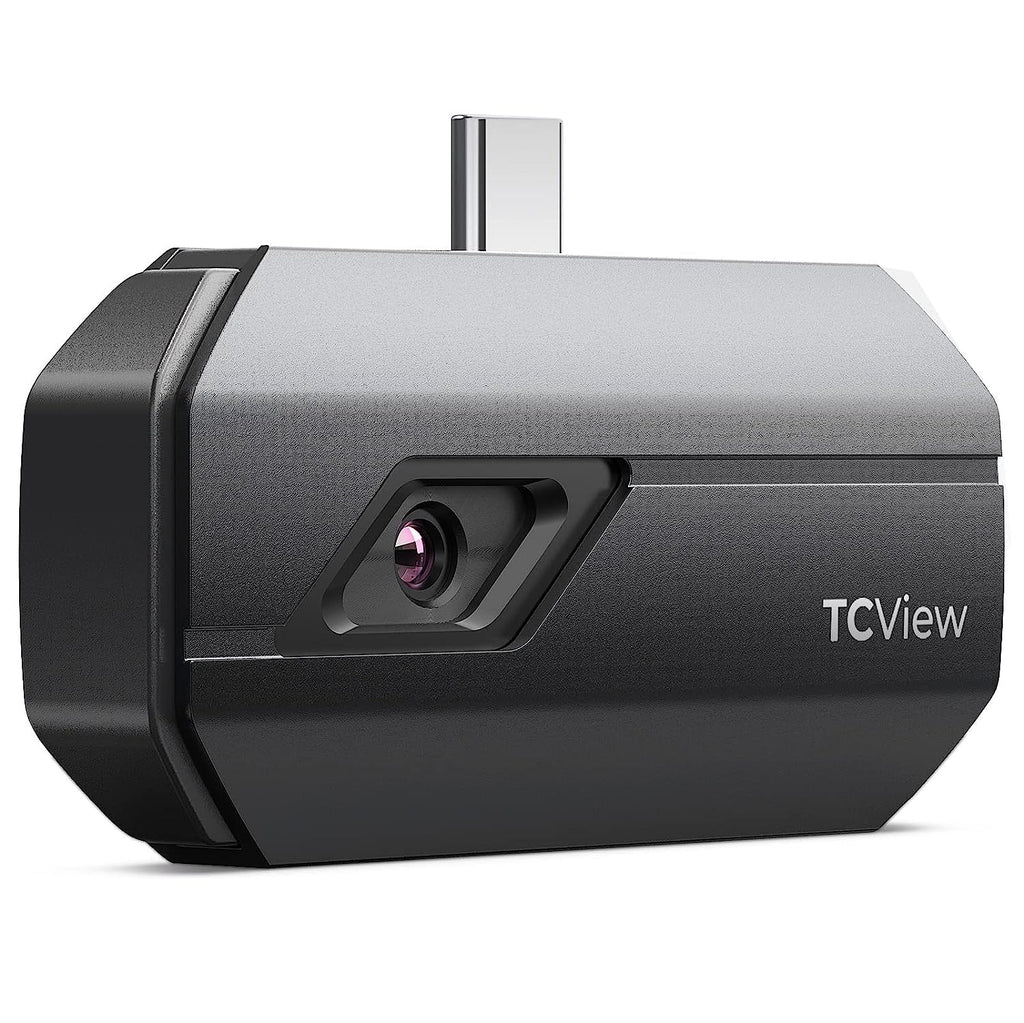

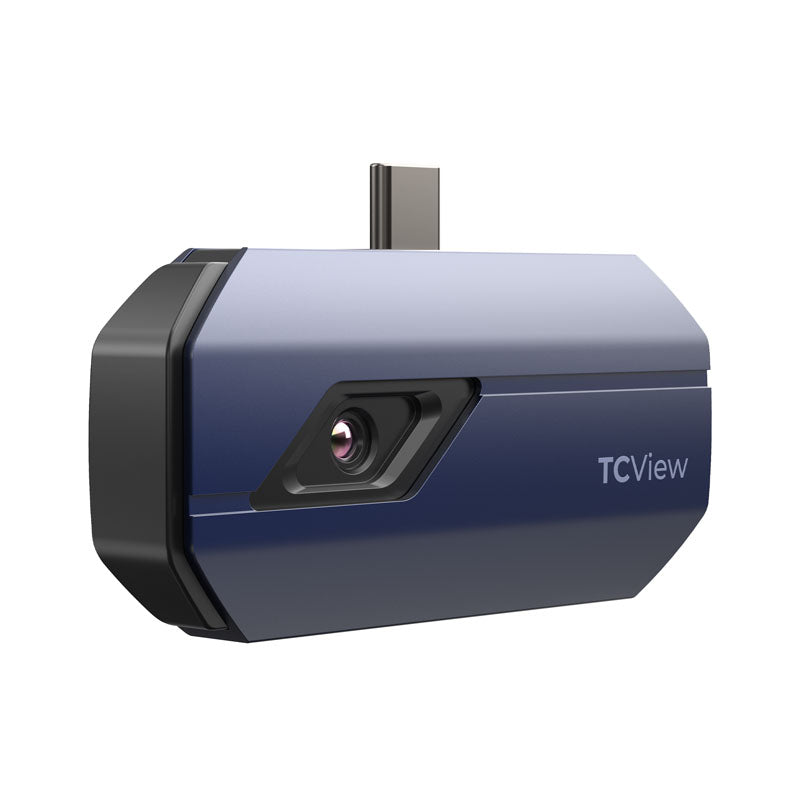

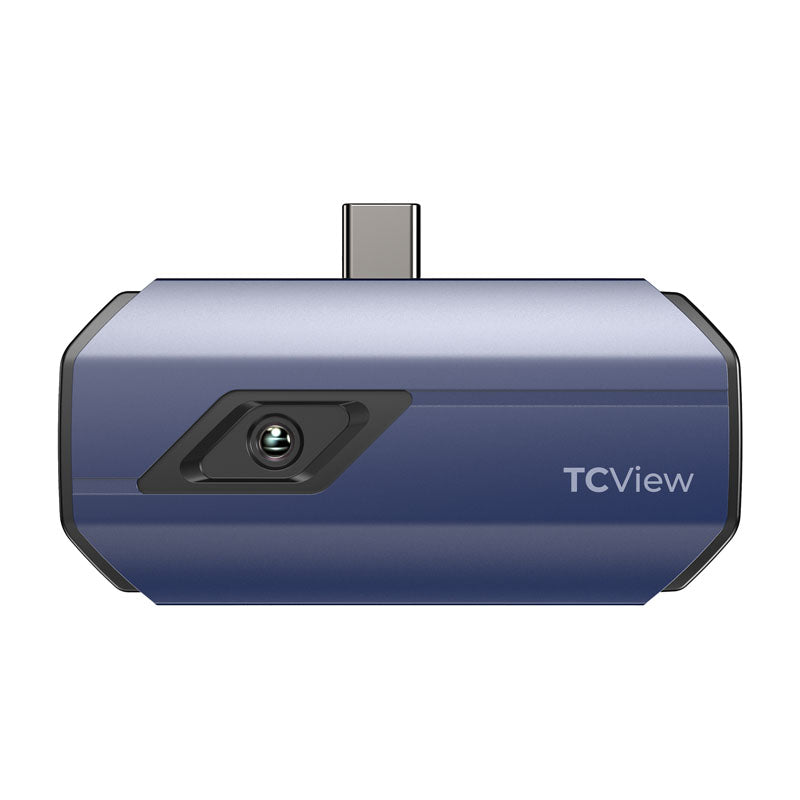

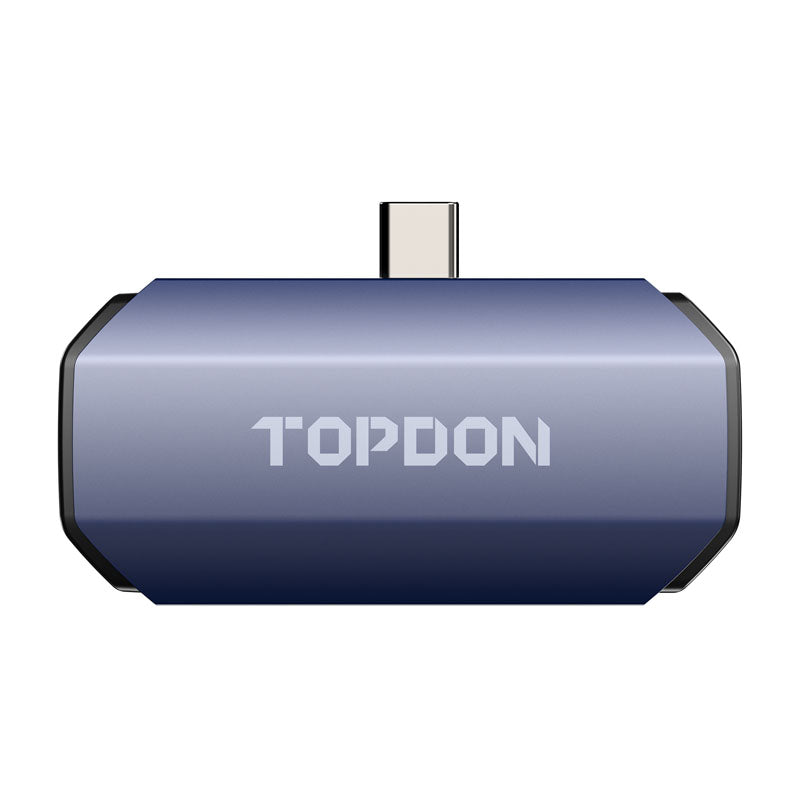

TC001 | Universelle Wärmebildkamera (256x192 Pixel Auflösung) | TOPDON

1. Darstellung klarer Wärmebilder mit einer ultrahohen Infrarot-Auflösung von 256 x 192 Pixeln.

2. Anzeige detaillierter Temperaturänderungen dank hoher thermischer Empfindlichkeit von 50 mK.

3. Hochpräzise Temperaturmessung mit einer maximalen Abweichung von ± 2 °C.

4. Messung von Objekttemperaturen im Bereich von -20 °C bis 550 °C.

5. Temperaturüberprüfung durch manuelle Auswahl von drei Messmodi: Punkt, Linie (höchster und niedrigster Wert) und Fläche (höchster und niedrigster Wert).

6. Überwachung von Temperaturverläufen in einer Wellenform-Grafik.

7. Auswahl aus verschiedenen Farbpaletten für eine interaktivere Darstellung.

8. Anpassbare Ober- und Untergrenzen sowie entsprechende Farbzuweisungen für eine intuitive Temperaturanzeige.

9. Spektralbereich: 8–14 μm, Pixelgröße: 12 μm, Bildrate: 25 Hz.

Compatible with Android phones and Windows tablets

The TOPDON TC001 thermal imaging camera is highly compatible with Android phones that support OTG function. Users can download the TC001 app from Google Play to turn their smartphone into a multipurpose infrared camera. TC001 also supports Windows tablets with the TCView app, which can be downloaded from the official website of TOPDON.

Excellent image quality with an IR resolution of 256 x 192 pixels

Equipped with a 256x192 ultra high resolution IR camera, the TOPDON TC001 infrared thermal imaging camera can display thermal images of targets in high resolution and sharpness, providing excellent image quality. This is particularly suitable for objects with low surface temperature. etc. Such as circuit boards and other electronic devices.

DIY temperature range:

TOPDON TC001 has a DIY temperature range function, users can set the upper and lower limit, and the corresponding colour image is displayed when the object temperature exceeds this range.

Three dimensions of temperature measurement:

Users can manually select three dimensions: Point, line (highest and lowest) and surface (highest and lowest) to check the temperature in the TC001 app. Three areas in each dimension allow the user to read nine temperature ranges at the same time. When connected to a tablet, you can choose unlimited dimensions to test additional areas.

Multiple color palettes:

This thermal imaging scanner device provides nine unique color palettes for mobile users to adjust the temperature display. The user can read the temperature difference in the scene with the selected gradient colour. With 99 available colour palettes, more possibilities open up when using a tablet.

Image Adjustment

This thermal imaging camera can combine thermal images with conventional camera images taken by mobile cameras, making it easier to identify features on the screen and locate the cause of problems. Users can also adjust image sharpness and contrast to get the most sharp image possible.

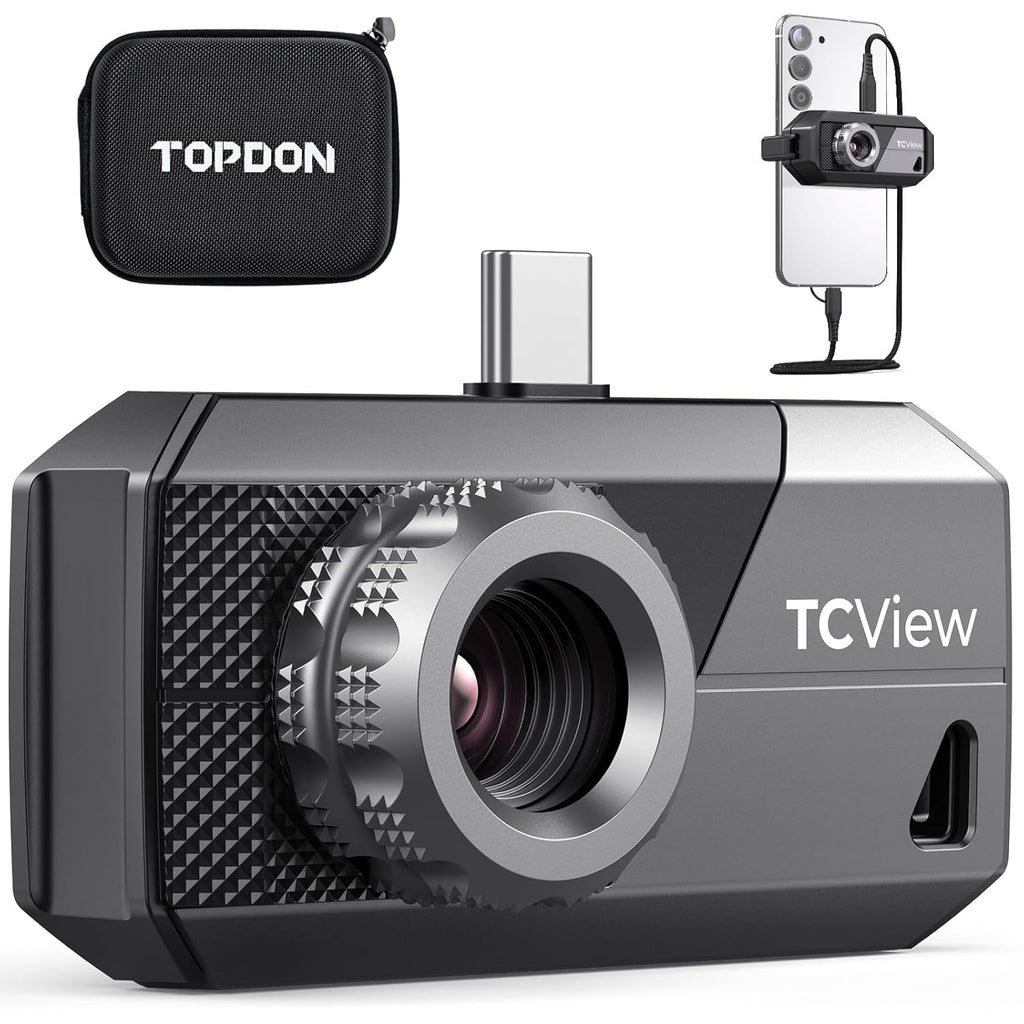

COMPLETED ACCESSORIES:

Complete accessories:

TC001 Thermal Imaging Camera

Multifunctional adapter cable

carry bag

Cleaning cloth

Instruction manual

Built for mobility

TOPDON TC001 is compact and easy to pair with your Android phone. With dimensions of 71 x 42 x 14 mm (2.8 x 1.65 x 0.55 inches) and a weight of 30 g (1.05 ounces), this infrared thermal imaging camera is a very practical portable tool for cylinder testing and insulation work, anytime and anywhere. wherever you work.
